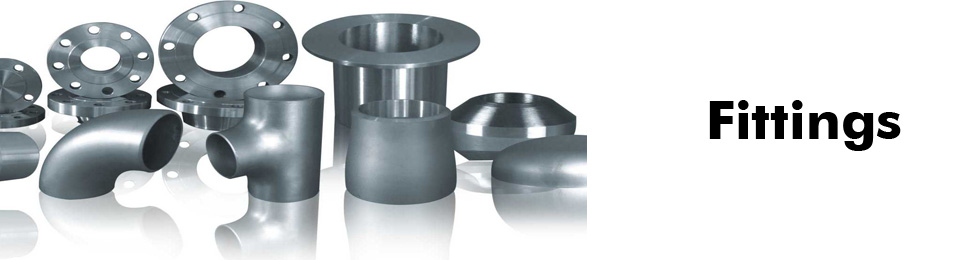

Fittings


Stainless Steel Fittings

Product
Specification
Grade
Size Range
Seamless Butt Weld Fittings
ASTM A / ASME SA 403 WPS
TP304 L/H, TP316 L/H, TP321/H, TP 310 / 310S, TP 347/H, TP 317/L, TP 904/L
1/2" - 12"
ASTM A / ASME SA 815 WPS
UNS S31803/S32205/S32750/S32760, SMO254
1/2" - 12"
Welded Butt Weld Fittings
ASTM A / ASME SA 403 WP-W, WP-WX ( Welded 100 % X Ray)
TP304 L/H, TP316 L/H, TP321/H, TP 310 / 310S, TP 347/H, TP 317/L, TP 904/L
1/2" - 48"
ASTM A / ASME SA 815 WP-W
UNS S31803/S32205/S32750/S32760, SMO254
1/2" - 48"
Forged Fittings
ASTM A / ASME SA 182
F304L/H, F316L/H, F321/H, F347/H, F310/S, F317/L, F51, F53, F55
1/2"- 4"


Carbon Steel Fittings

Product
Specification
Grade
Size Range
Seamless Butt Weld Fittings
ASTM A / ASME SA 234 WPS
WPA, WPB, WPHY
1/2" - 24"
ASTM A / ASME SA 420
WPL 1, WPL 3, WPL 4, WPL 6, WPL 8
1/2" - 24"
Welded Butt Weld Fittings
ASTM A / ASME SA 234 WP-W, WP-WX ( Welded 100 % X Ray)
WPA, WPB, WPHY
1/2" - 60"
ASTM A / ASME SA 420 WP-W, WP-WX ( Welded 100 % X Ray)
WPL 1, WPL 3, WPL 4, WPL 6, WPL 8
1/2"" - 60"
Forged Fittings
ASTM A / ASME SA 105, A350
Gr I, Gr II, LF 1, LF2, LF3, LF4, LF6, LF8
1/2"- 4"


Alloy Steel Fittings

Product
Specification
Grade
Size Range
Seamless Butt Weld Fittings
ASTM A / ASME SA 234 WPS
WP1, WP5, WP9, WP11, WP12, WP22, WP91
1/2" - 24"
Welded Butt Weld Fittings
ASTM A / ASME SA 234 WP-W, WP-WX ( Welded 100 % X Ray)
WP1, WP5, WP9, WP11, WP12, WP22, WP91
16" - 60"
Forged Fittings
ASTM A / ASME SA 182
F1, F5, F9, F11, F12, F22, F91
1/2"- 4"


Nickel Alloy Fittings

Product
Specification
Grade
Size Range
Seamless Butt Weld Fittings
ASTM / ASME SB 366 WPS
Monel 400, K500 / Incoloy 800 & 825 / Inconel 600, 601 & 625 / Nickel 200 & 201 / Hastelloy C22, C276 & B2/3
1/2" to 6"
Welded Butt Weld Fittings
ASTM / ASME SB 366 WP-W, WP-WX ( Welded 100 % X Ray)
1/2" to 24"
Forged Fittings
ASTM A / ASME SA 366
1/2" to 4"
